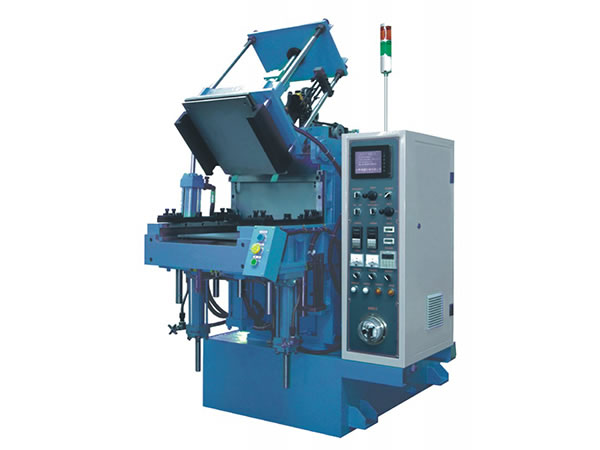

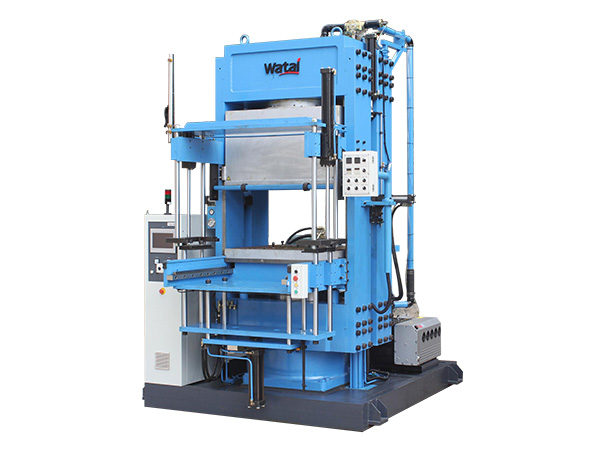

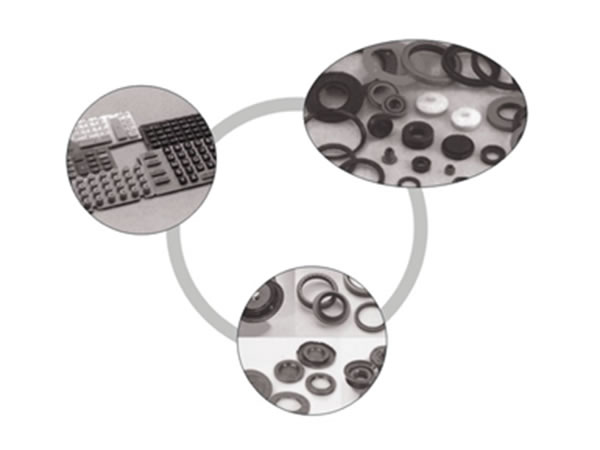

The XLBK-V series 650KN-1500KN vacuum rubber compression molding press is used in vulcanization process of producing various rubber seals by using natural rubber, synthetic rubber and silicone rubber.
|Clamping force (KN)||650||1000||1500|
|Platen size (mm)||250 × 300||350 × 400||450 × 480|
|Frame size (mm)||290 × 320||390 × 420||500 × 520|
|Max clamping stroke (mm)||90||80||110|
|Min thickness (mm)||50||80||70|

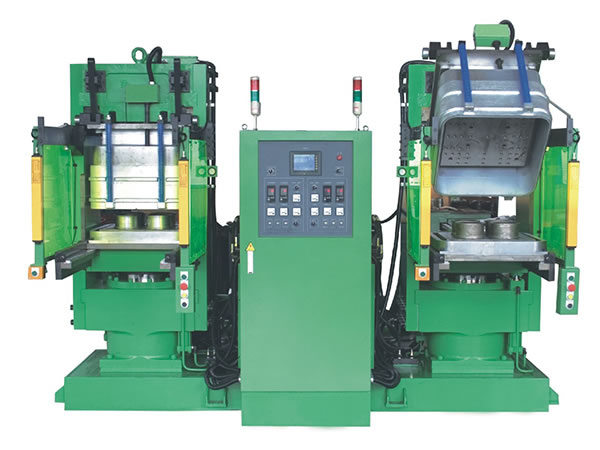

1. It is a double base machine. The upper mold can be flipped over, and the flap angle is adjustable.
2. It is equipped with three brands of computer control systems: Siemens, Techmation and Mitsubishi.
3. There are three optional languages for computer control system: Chinese, English and Japanese.
We have 51 years of experience in equipment manufacturing, so that we can customize machines according to user requirements in following aspects:
1. The machine can be either vertical or horizontal.
2. The machine color can be customized.
3. Many accessories can be designated.
4. You can change the technical parameters such as platen size, clamping force, injection volume etc.
We have 18 technicians with 20 years of experience. So, our customers just need to provide the drawings and communicate with details, then, we can develop products which can meet your requirements.
Calculated from the date of shipment, our machine has a guarantee period of one year, which means we will provide free machine parts to replace the broken ones during this period.
Our company stocks consumable machine parts. You can either choose to ship with the machine or to deliver by express in case of need.
All of our after-sale service staff have more than 10 years of experience in this field. Meanwhile, they are familiar with our machines. And they also have applied for visas in several regions. So, if you have demands, we can arrange a specialist to go to our customers' location for installation and debugging until the machine can run properly.
