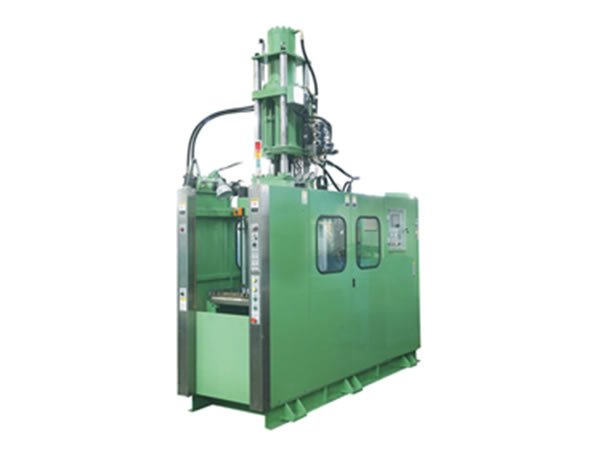

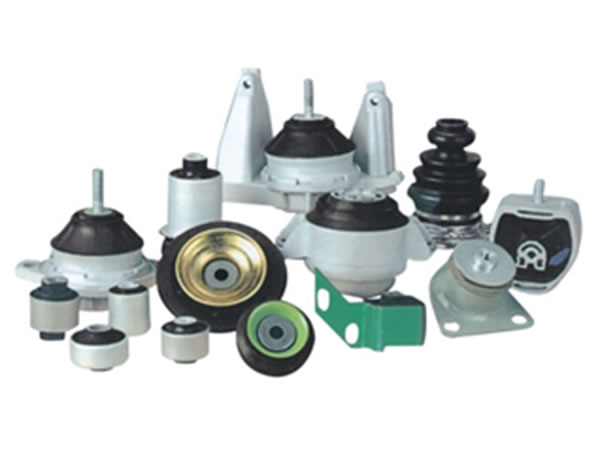

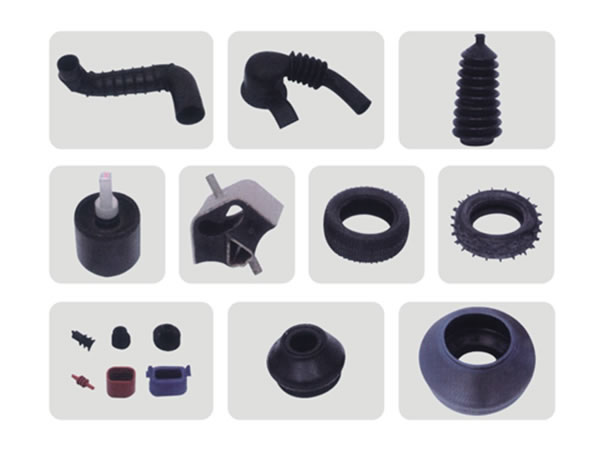

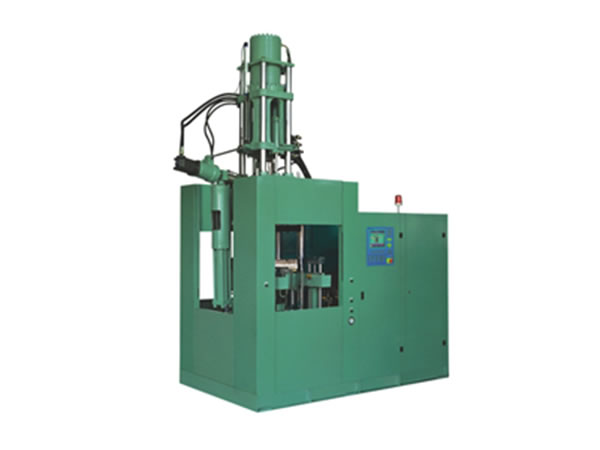

XZL series rubber injection molding machine can be used to produce natural rubber, synthetic rubber and other rubber model products.
|Injection unit||Capacity (cm³)||600||1000||1500||1500||2000||2000||2500||4000|
|Plunger Dia. (mm)||55||60||70||70||80||80||90||110|
|Screw Dia. (mm)||40||40||50||50||50||50||50||50|
|(L/D)||12.5: 1||12.5: 1||11.5: 1||11.5: 1||11.5: 1||11.5: 1||11.5: 1||11.5: 1|
|Clamping unit||Force (KN)||1500||2000||2000||2500||2500||3000||3000||5000|
|Platen size (mm)||450×480||480×550||480×550||480×550||480×550||650×720||650×720||750×850|

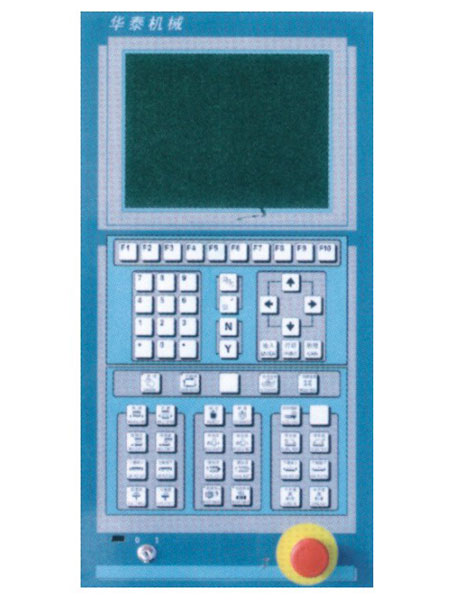

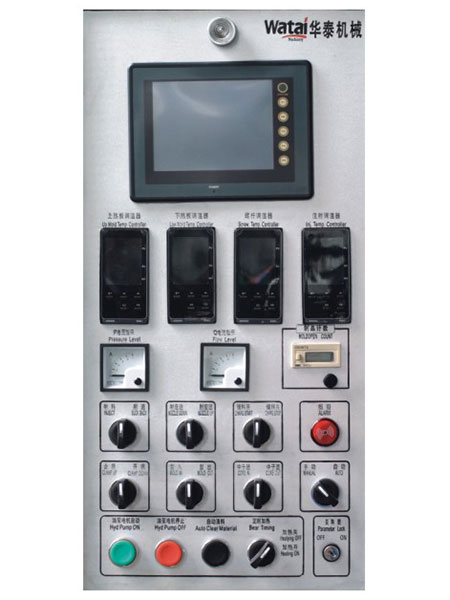

1． Optional computer control systems

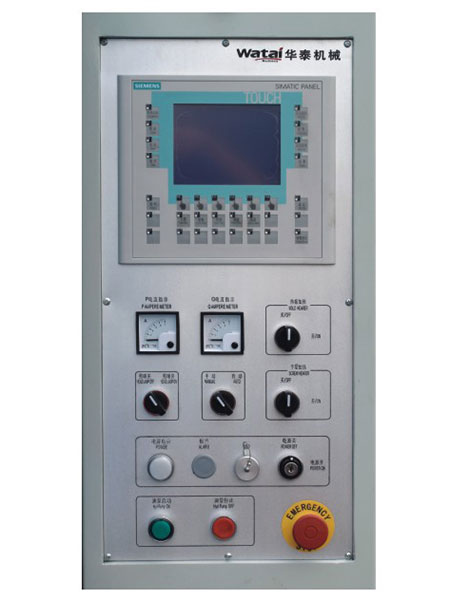

● Three optional computer control systems: Siemens, Techmation and Mitsubishi;
● The rubber injection molding machine can store multiple sets of mold operation process parameters;
● Multi-task operation system;
● During the whole operation process, it can do self-monitoring, self-fault diagnosis and alarm in time;
● Three optional languages: Chinese, English and Japanese.

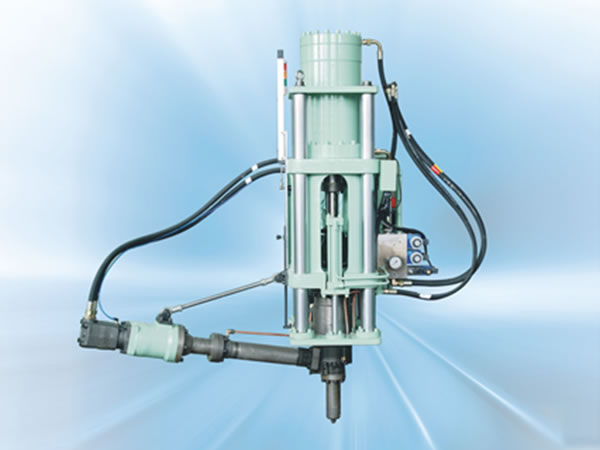

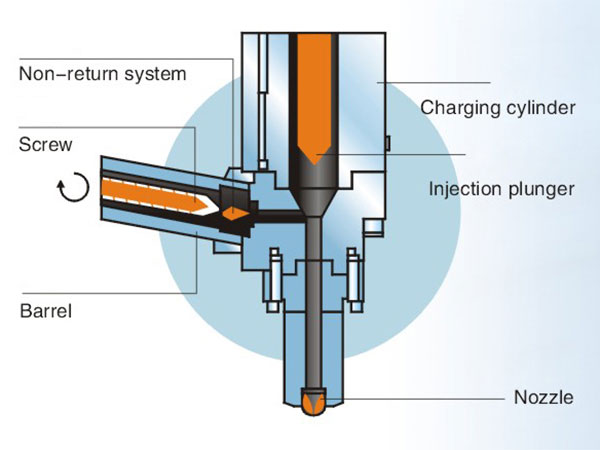

2. Stable and precise molding machine injection system
● The rubber injection molding machine is suitable for feeding and injection of rubber with different hardness.
● It has high-resolution displacement sensor to ensure precise and stable injection volume.
● It has reasonable injection runner so that it can minimize the volume of residual rubber and the loss of injection pressure.
3. Clamping unit with high strength and high efficiency
● The deformation is less than 0.10mm in case of load.
● The system can realize mold clamping rapidly through the help of two auxiliary hydro-cylinders.
● It has an efficient and simple exhaust which can ensure complete discharge of the gas produced by vulcanization.
● The molds can be always adjusted in low speed during the whole process so that the mold adjustment is more precise and safer.
4. Silicone rubber feeding unit
5. Energy saving and water saving
It adopts variable plunger pump from Bosch Rexroth which can reduce the power and cooling water consumption up to 20%-50%.
6. It adopts temperature adjustment units in different parts of the machine to save energy. So that it greatly reduces running cost.
We have 51 years of experience in equipment manufacturing, so that we can customize machines according to user requirements in following aspects:
1. The machine can be either vertical or horizontal.
2. The machine color can be customized.
3. Many accessories can be designated.
4. You can change the technical parameters such as platen size, clamping force, injection volume etc.
We have 18 technicians with 20 years of experience. So, our customers just need to provide the drawings and communicate with details, then, we can develop products which can meet your requirements.
Calculated from the date of shipment, our machine has a guarantee period of one year, which means we will provide free machine parts to replace the broken ones during this period.
Our company stocks consumable machine parts. You can either choose to ship with the machine or to deliver by express in case of need.
All of our after-sale service staff have more than 10 years of experience in this field. Meanwhile, they are familiar with our machines. And they also have applied for visas in several regions. So, if you have demands, we can arrange a specialist to go to our customers' location for installation and debugging until the machine can run properly.
