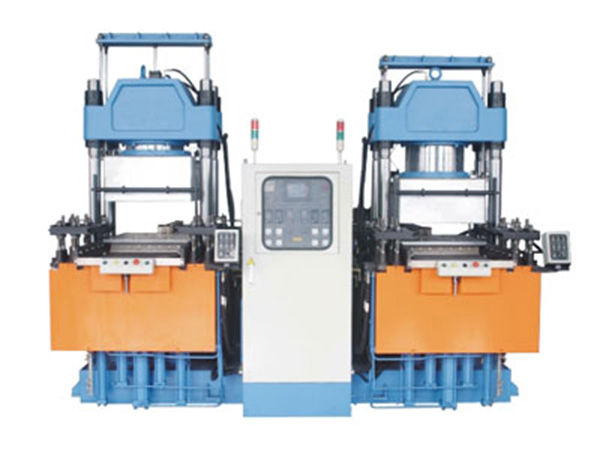

1500KN -5000KN Rubber Compression Molding Press

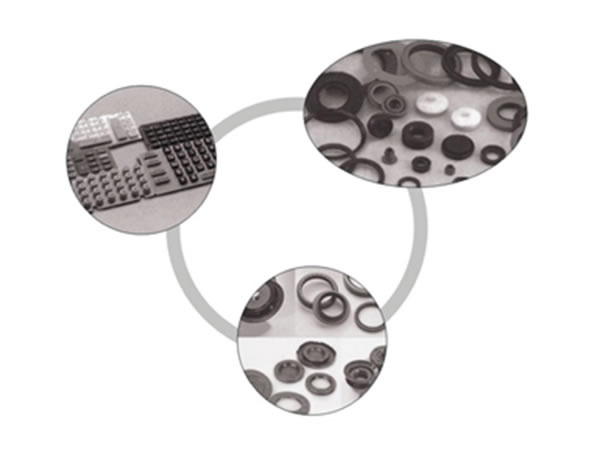

The XLBK-V series 1500KN -5000KN rubber compression molding press is a professional equipment set for producing high precision and high quality rubber molds. It is suitable in producing rubber seals by using natural rubber, synthetic rubber and silicone rubber.
Main technical data sheet
XLB-V-150 | Type | XLB-V-150 |
| Clamping force (KN) | 1500 |
| Platen size (mm) | 450x480 |
| Daylight (mm) | 300 |
| Max clamping stroke (mm) | 250 |
| Min thickness (mm) | 50 |
| Heating (KW) | 12 |
| Flap angle | 45 |
| Capacity (KW) | 18.6 |
| Type | XLB-V-200 |
| Clamping force (KN) | 2000 |
| Platen size (mm) | 505x510 |
| Daylight (mm) | 300 |
| Max clamping stroke (mm) | 250 |
| Min thickness (mm) | 50 |
| Heating (KW) | 13.8 |
| Flap angle | 45 |
| Capacity (KW) | 21.3 |
| Type | XLB-V-250 |
| Clamping force (KN) | 2500 |
| Platen size (mm) | 570x610 |
| Daylight (mm) | 300 |
| Max clamping stroke (mm) | 250 |
| Min thickness (mm) | 50 |
| Heating (KW) | 15.3 |
| Flap angle | 55 |
| Capacity (KW) | 23.9 |
| Type | XLB-V-350 |
| Clamping force (KN) | 3500 |
| Platen size (mm) | 700x700 |
| Daylight (mm) | 300 |
| Max clamping stroke (mm) | 250 |
| Min thickness (mm) | 50 |
| Heating (KW) | 16 |
| Flap angle | 45 |
| Capacity (KW) | 28.5 |
| Type | XLB-V-500 |
| Clamping force (KN) | 5000 |
| Platen size (mm) | 800x950 |
| Daylight (mm) | 300 |
| Max clamping stroke (mm) | 250 |
| Min thickness (mm) | 50 |
| Heating (KW) | 18 |
| Flap angle | 45 |
| Capacity (KW) | 34.5 |
