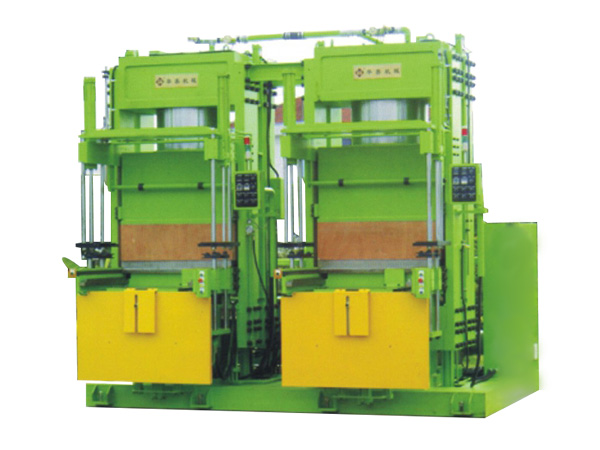

6000KN Rubber Compression Molding Press

  •  6000KN Rubber Compression Molding
  •  6000KN Rubber Compression Molding

The 6000KN rubber compression molding press is also professional equipment for producing high precision and high quality rubber molds. It is used in producing rubber seals by using natural rubber, synthetic rubber and silicone rubber.

Main technical data sheet
Clamping force 6000KN
Platen size 1000X800mm
Daylight 200mm
Max stroke 450mm
Min thickness 250mm
Pressure 21Mpa
Heating 2x28.2KW
Oil pump motor 15KW
Vacuum pump motor 7.5KW
Machine size 3800x3125x3600mm
Machine weight 35000kg
