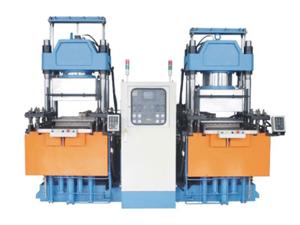

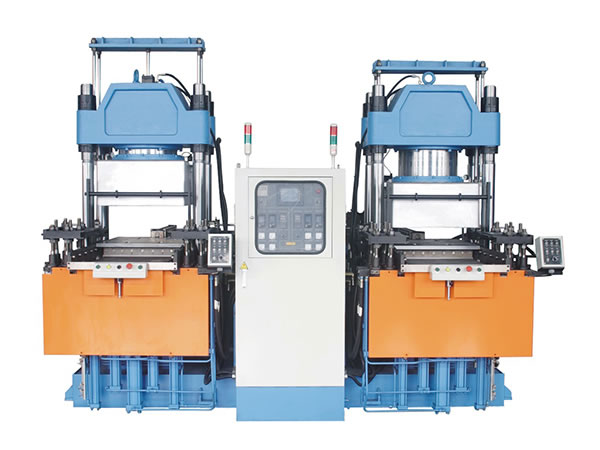

Rubber Compression Molding Press

  • Rubber Compression Molding
  • Rubber Compression Molding
  • Rubber Compression Molding
Application

The XLB-V series rubber compression molding press is used in vulcanization process of producing various rubber seals with natural rubber, synthetic rubber and silicone rubber.

Parameters
Type XLB-V-150 XLB-V-200 XLB-V-250 XLB-V-350 XLB-V-500
Clamping force (KN) 1500 2000 2500 3500 5000
Platen size (mm) 450 × 480 505 × 510 570 × 610 700 × 700 800 × 950
Daylight (mm) 300 300 300 300 300
Max clamping stroke (mm) 250 250 250 250 250
Min thickness (mm) 50 50 50 50 50
Heating (KW) 12 13.8 15.3 16 18
Flap angle 45 45 55 45 45
Capacity (KW) 18.6 21.3 23.9 28.5 34.5
Features

1. There are two types to choose from: single base and double base.

2. Three optional control systems
The machines produced by Huatai are equipped with three kinds of effective computer control system: Siemens, Techmation and Mitsubishi. The icons of these systems are easy to understand, so that the operators can know the operation and production process in real time. This increase production efficiency.

3. The control system has three optional languages: Chinese, English and Japanese.

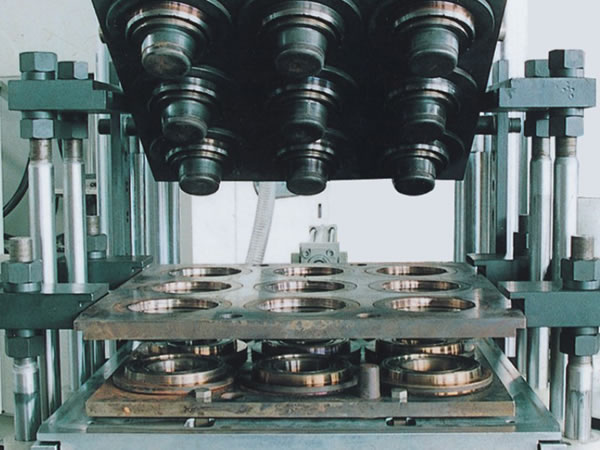

4. It has optional upper and bottom patting plates so that the finished molds can be ejected completely. The upper turning plate has a flap angle up to 45°. The angle is adjustable with this range.

The product is CE certified. It is also exported to Russia, Ukraine, Japan, India.

Customization

We have 51 years of experience in equipment manufacturing, so that we can customize machines according to user requirements in following aspects:
1. The machine can be either vertical or horizontal.
2. The machine color can be customized.
3. Many accessories can be designated.
4. You can change the technical parameters such as platen size, clamping force, injection volume etc.

We have 18 technicians with 20 years of experience. So, our customers just need to provide the drawings and communicate with details, then, we can develop products which can meet your requirements.

After-sale service

Calculated from the date of shipment, our machine has a guarantee period of one year, which means we will provide free machine parts to replace the broken ones during this period.

Our company stocks consumable machine parts. You can either choose to ship with the machine or to deliver by express in case of need.

All of our after-sale service staff have more than 10 years of experience in this field. Meanwhile, they are familiar with our machines. And they also have applied for visas in several regions. So, if you have demands, we can arrange a specialist to go to our customers' location for installation and debugging until the machine can run properly.
