4-column Rubber Injection Molding Machine

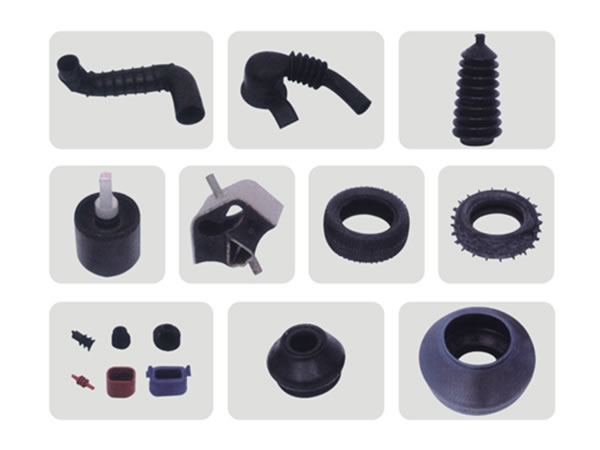

XZL-I, XZL-II type 4-column rubber injection molding machine adopts a structure with 4 columns. It is made up of the following units: preheating, injection, die sinking, mold clamping, mold shifting and ejection. By cooperating with corresponding hydraulic system, oil heating system and control system, the machine, with these units, can be used to produce rubber molding products by using natural rubber and synthetic rubber.

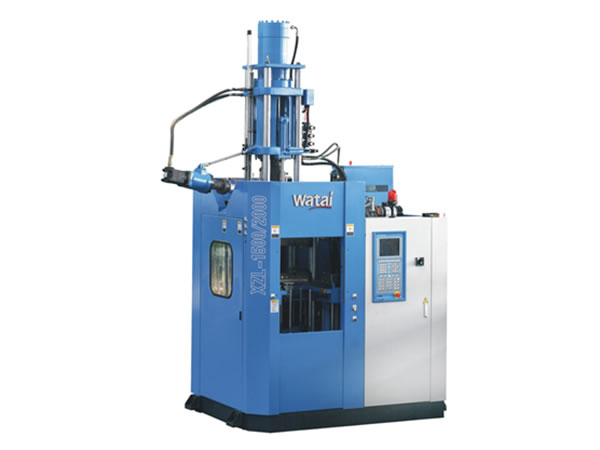

XZL-I type 4-column Rubber Injection Molding Machine
XZL-1500x2000
| Type |
XZL-1500x2000 |
| Injection capacity(cc) |
1500 |
| Clamping force(KN) |
2000 |
| Injection pressure(Mpa) |
170 |
| Screw DIA(mm) |
40 |
| Screw L/D |
12.5:1 |
| Clamping stroke(mm) |
450 |
| Daylight(mm) |
500 |
| Platen size(mm) |
480x550 |
| Motor power(KW) |
15 |
| Heating power(KW) |
12 |
XZL-2000x2500
| Type |
XZL-2000x2500 |
| Injection capacity(cc) |
2000 |
| Clamping force(KN) |
2500 |
| Injection pressure(Mpa) |
170 |
| Screw DIA(mm) |
40 |
| Screw L/D |
11.5:1 |
| Clamping stroke(mm) |
450 |
| Daylight(mm) |
500 |
| Platen size(mm) |
480x550 |
| Motor power(KW) |
15 |
| Heating power(KW) |
12 |
XZL-2500x3000
| Type |
XZL-2500x3000 |
| Injection capacity(cc) |
2500 |
| Clamping force(KN) |
3000 |
| Injection pressure(Mpa) |
170 |
| Screw DIA(mm) |
50 |
| Screw L/D |
11.5:1 |
| Clamping stroke(mm) |
450 |
| Daylight(mm) |
650 |
| Platen size(mm) |
650x720 |
| Motor power(KW) |
15 |
| Heating power(KW) |
18 |
XZL-3000x4000
| Type |
XZL-3000x4000 |
| Injection capacity(cc) |
3000 |
| Clamping force(KN) |
4000 |
| Injection pressure(Mpa) |
170 |
| Screw DIA(mm) |
50 |
| Screw L/D |
11.5:1 |
| Clamping stroke(mm) |
450 |
| Daylight(mm) |
700 |
| Platen size(mm) |
750x850 |
| Motor power(KW) |
22 |
| Heating power(KW) |
18 |
XZL-4000x5000
| Type |
XZL-4000x5000 |
| Injection capacity(cc) |
4000 |
| Clamping force(KN) |
5000 |
| Injection pressure(Mpa) |
170 |
| Screw DIA(mm) |
50 |
| Screw L/D |
11.5:1 |
| Clamping stroke(mm) |
450 |
| Daylight(mm) |
700 |
| Platen size(mm) |
750x850 |
| Motor power(KW) |
22 |
| Heating power(KW) |
18 |

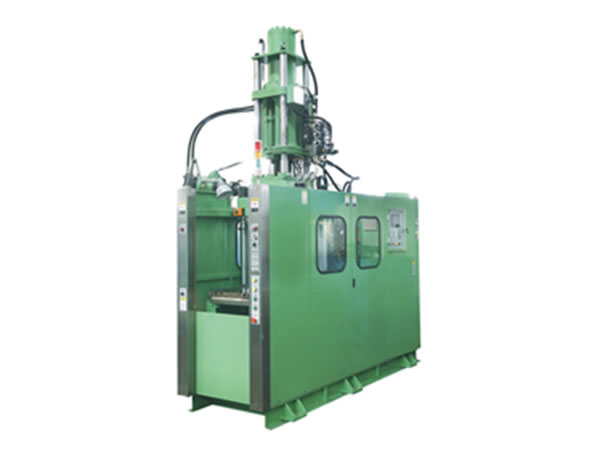

XZL-II type 4-column Rubber Injection Molding Machine
XZL-1500x2000
| Type |
XZL-1500x2000 |
| Injection capacity(cc) |
1500 |
| Clamping force(KN) |
2000 |
| Injection pressure(Mpa) |
170 |
| Screw DIA(mm) |
40 |
| Screw L/D |
12.5:1 |
| Clamping stroke(mm) |
450 |
| Daylight(mm) |
500 |
| Platen size(mm) |
480x550 |
| Motor power(KW) |
15 |
| Heating power(KW) |
12 |
XZL-2000x2500
| Type |
XZL-2000x2500 |
| Injection capacity(cc) |
2000 |
| Clamping force(KN) |
2500 |
| Injection pressure(Mpa) |
170 |
| Screw DIA(mm) |
40 |
| Screw L/D |
11.5:1 |
| Clamping stroke(mm) |
450 |
| Daylight(mm) |
500 |
| Platen size(mm) |
480x550 |
| Motor power(KW) |
15 |
| Heating power(KW) |
12 |
XZL-2500x3000
| Type |
XZL-2500x3000 |
| Injection capacity(cc) |
2500 |
| Clamping force(KN) |
3000 |
| Injection pressure(Mpa) |
170 |
| Screw DIA(mm) |
50 |
| Screw L/D |
11.5:1 |
| Clamping stroke(mm) |
450 |
| Daylight(mm) |
650 |
| Platen size(mm) |
650x720 |
| Motor power(KW) |
15 |
| Heating power(KW) |
18 |
XZL-3000x4000
| Type |
XZL-3000x4000 |
| Injection capacity(cc) |
3000 |
| Clamping force(KN) |
4000 |
| Injection pressure(Mpa) |
170 |
| Screw DIA(mm) |
50 |
| Screw L/D |
11.5:1 |
| Clamping stroke(mm) |
450 |
| Daylight(mm) |
700 |
| Platen size(mm) |
750x850 |
| Motor power(KW) |
22 |
| Heating power(KW) |
18 |
XZL-4000x5000
| Type |
XZL-4000x5000 |
| Injection capacity(cc) |
4000 |
| Clamping force(KN) |
5000 |
| Injection pressure(Mpa) |
170 |
| Screw DIA(mm) |
50 |
| Screw L/D |
11.5:1 |
| Clamping stroke(mm) |
450 |
| Daylight(mm) |
700 |
| Platen size(mm) |
750x850 |
| Motor power(KW) |
22 |
| Heating power(KW) |
18 |
