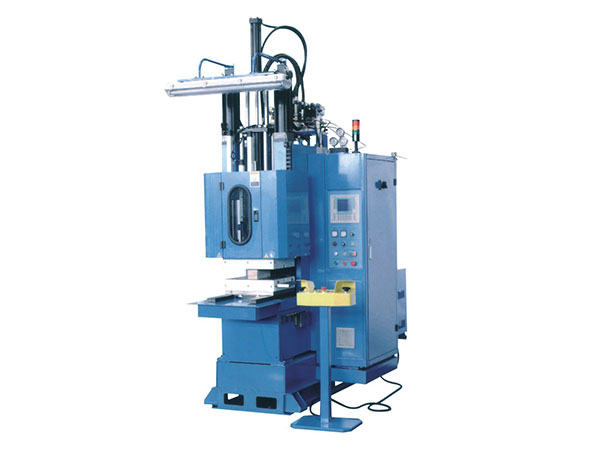

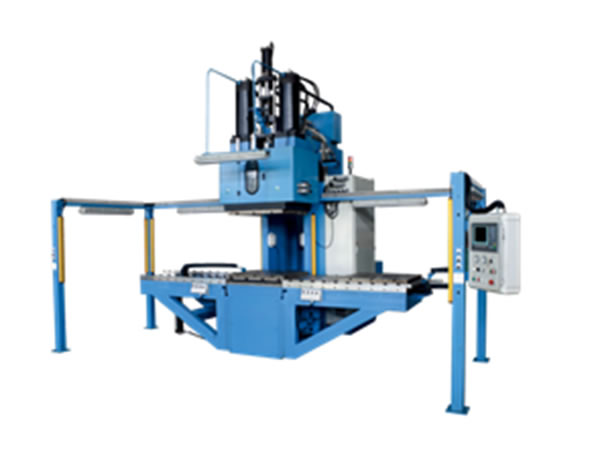

C-Frame Rubber Injection Molding Machine

  • C-Frame Rubber Injection Molding
  • C-Frame Rubber Injection Molding
  • C-Frame Rubber Injection Molding

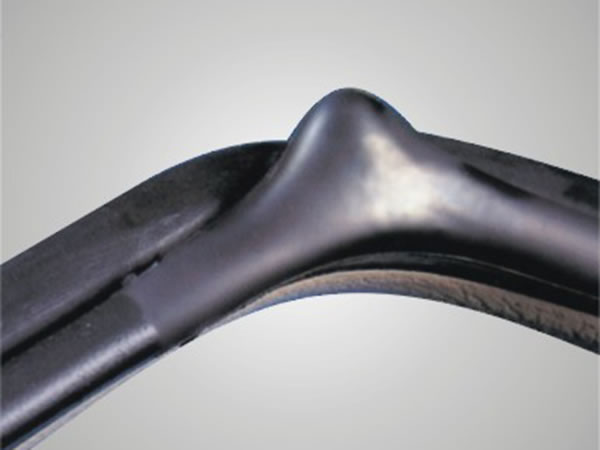

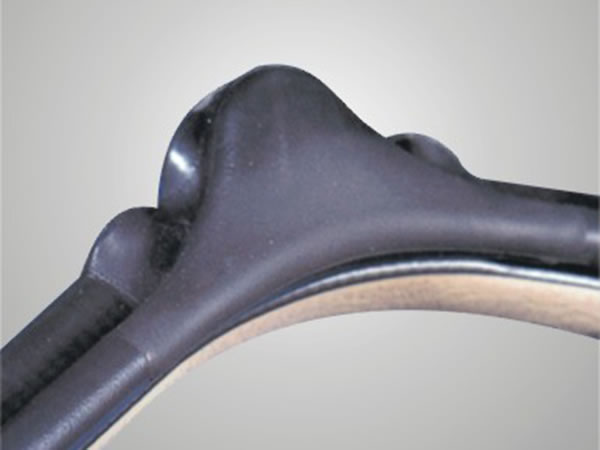

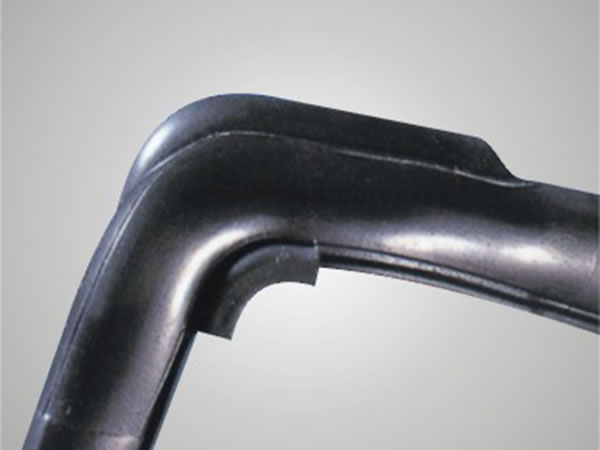

The XZL-C-frame rubber injection molding machine which is also called car sealing strip joint angle making machine, is specially used for producing sealing strip joint and joint angles by natural rubber or synthetic rubber.

Parameters

 Type XZL-100 ×270 XZL-160 ×270 XZL-200 ×400 XZL-300 ×400 XZL-200 ×800
Injection unit Capacity (cm ³) 100 160 200 300 200
Speed (cm ³/S) 32 44 55 30 65
Plunger Dia.(mm) 25 32 34 38 34
Screw Dia. (mm) 30 30 30 30 30
(L/D) 12:1 12:1 12:1 12:1 12:1
Clamping unit Force (KN) 270 270 400 400 800
Stroke (mm ) 295 295 310 295 410
Daylight (mm ) 425 425 430 425 605
Thickness (mm ) 130 130 120 130 200
Platen size (mm ) 300 ×300 300 ×300 450 ×450 450 ×450 500 ×700
Others Motor (KW) 7.5 7.5 7.5 7.5 7.5
Heating (KW) 5.4 5.4 9.6 9.6 10.8
Dimension (m) 2.1 ×1.0 ×2.6 2.1 ×1.0 ×2.6 2.1 ×1.3 ×2.6 2.1 ×1.3 ×2.6 2.8 ×1.3 ×3.0
Features

1. Optional hydraulic powers can be used to assist feeding injection. Also there are optional ejection systems.
2. The injection unit is stable and precise.
3. It is equipped with high strength and high precision clamping unit.
4. There are three optional languages for the operation system: Chinese, English and Japanese.
5. The feeding barrel is movable.
6. This machine is equipped with a safety switch which can protect the molds during mold clamping. The switch greatly increased the machine safety.

After-sale service

The machine is packaged in wooden material. Calculated from the date of shipment, our machine has a guarantee period of one year, which means we will provide free machine parts to replace the broken ones during this period.

Our company stocks consumable machine parts. You can either choose to ship with the machine or to deliver by express in case of need.

All of our after-sale service staff have more than 10 years of experience in this field. Meanwhile, they are familiar with our machines. And they also have applied for visas in several regions. So, if you have demands, we can arrange a specialist to go to our customers' location for installation and debugging until the machine can run properly.
